Dovetail milling cutters are essential tools in precision machining, widely used in industries like aerospace, automotive, and general manufacturing. These cutters offer superior accuracy and a clean finish, making them ideal for creating dovetail grooves in various materials, including metals, plastics, and composites. But what exactly makes them the right choice for your machining needs?
In this article, we'll explore the key benefits, applications, and technical specifications of Dovetail Milling Cutters, so you can make an informed decision on whether these tools are suitable for your next project.

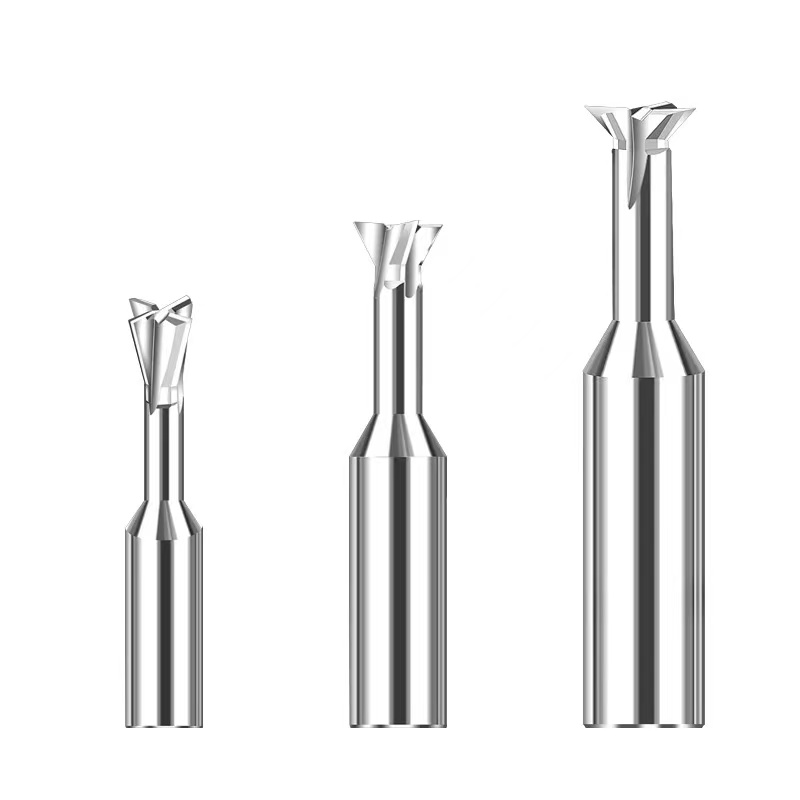

Dovetail milling cutters are designed to create dovetail-shaped cuts in workpieces. The "dovetail" refers to the distinctive V-shape that these tools produce, which is essential for assembling parts or creating interlocking features. These cutters are typically used in CNC machines for precision operations.
The design of a dovetail cutter includes multiple teeth with angles that allow for efficient chip removal while minimizing heat generation. They are commonly made from high-speed steel (HSS) or carbide, offering durability and long-lasting performance even under challenging machining conditions.
To ensure you choose the right tool for your machining tasks, it's important to understand the technical specifications of Dovetail Milling Cutters. Below are some of the key parameters:
| Parameter | Details |
|---|---|
| Material | High-Speed Steel (HSS) / Carbide |
| Cutting Edge Angle | 60°, 90°, or custom angles |
| Diameter | 10mm to 50mm (custom sizes available) |
| Shank Type | Round, Hex, or Morse Taper |
| Coating | TiN, TiAlN, or uncoated |
| Cutting Depth | Up to 5x diameter |
These specifications can vary based on the manufacturer, but Dongguan Drilling and Milling Tapping Tools Co., Ltd. offers a range of customizable Dovetail Milling Cutters to meet specific project requirements.
Choosing the right Dovetail Milling Cutter depends on a few critical factors, including the material you're machining, the required precision, and the depth of the cut. Here's a simple guide to help you:
Material of Workpiece: For tougher materials like stainless steel, carbide cutters are more effective, while HSS cutters may suffice for softer materials like aluminum.
Cutting Edge Angle: The angle of the cutter should match the required dovetail shape for your project. A 60° cutter is typically used for general dovetail cuts, while 90° cutters are ideal for more angular applications.
Cutting Depth: Consider the depth of the dovetail cut needed for your workpiece. Deeper cuts may require larger diameter cutters to maintain accuracy.
By considering these factors, you can select a Dovetail Milling Cutter that provides both the precision and efficiency you need.
Dovetail Milling Cutters are versatile tools used in various industries. Some common applications include:
Tool and Die Making: Creating dovetail grooves for tooling parts that need to fit together securely.
Precision Assembly: Used in the assembly of parts where interlocking features are required for a tight, stable fit.
Mold Making: Ideal for creating dovetail features in mold components, ensuring perfect alignment.
Aerospace and Automotive: Machining critical components with dovetail joints for enhanced strength and reliability.
Their ability to produce high-precision dovetail cuts makes them invaluable in the production of components where tight tolerances are crucial.
Q1: What materials can Dovetail Milling Cutters be used with?
A1: Dovetail Milling Cutters are suitable for machining a wide range of materials, including metals (such as steel, aluminum, and titanium), plastics, and composites. The choice of cutter material (HSS or carbide) depends on the material being machined.
Q2: How do I ensure the longevity of my Dovetail Milling Cutter?
A2: To maximize the life of your cutter, ensure that the cutting speed and feed rate are within recommended limits for the material being worked on. Regular cleaning and proper storage will also prevent premature wear and damage.
Q3: Can Dovetail Milling Cutters be used for both manual and CNC machining?
A3: Yes, Dovetail Milling Cutters can be used in both manual mills and CNC machines. However, CNC machines offer higher precision and automation, making them ideal for high-volume, precise machining tasks.
Dongguan Drilling and Milling Tapping Tools Co., Ltd. is a leading manufacturer specializing in high-quality cutting tools, including Dovetail Milling Cutters. Our products are designed with precision and durability in mind, ensuring they meet the demanding needs of professionals across various industries.
We offer a wide range of customizable tools to fit your specific requirements, and our team of experts is always available to provide technical support and advice. With our commitment to quality and customer satisfaction, we are your trusted partner in the machining industry.
For more information or to request a quote, feel free to contact us today!
