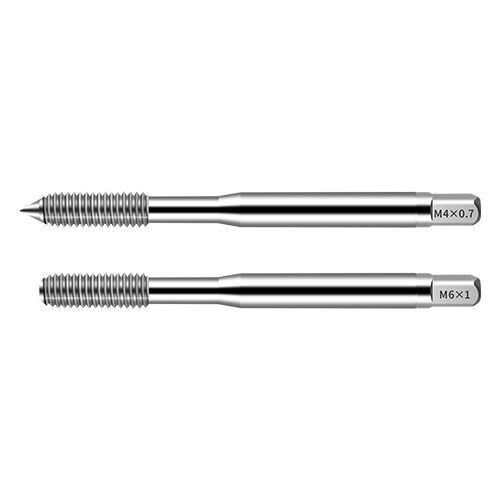

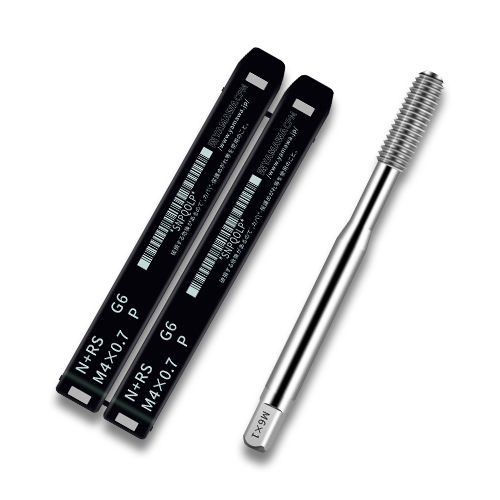

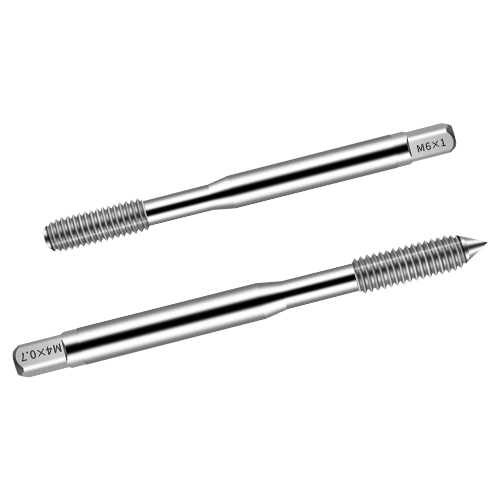

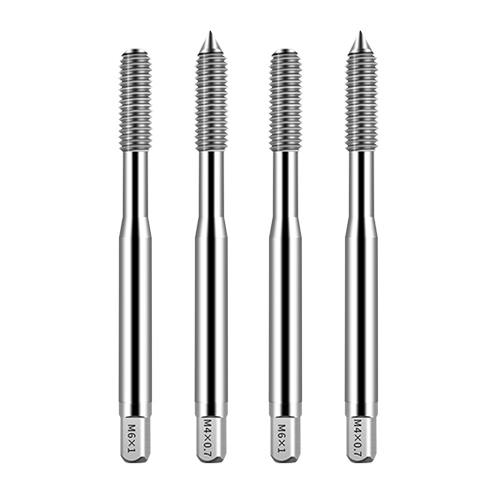

The extrusion thread forming taps for aluminum of ZXGLW factory are made of selected high-quality materials, can achieve chipless processing, and are available in a full range of specifications, suitable for a variety of machine tools and equipment. We will provide you with guaranteed service and timely delivery, hoping to gain more recognition from new and old customers.
The extrusion thread forming taps for aluminum are made of HSS high-strength material, which is currently widely used and economical cutting material. It is made by high-temperature quenching, high red hardness, sufficient tempering, surface steam treatment, uniform basic structure, high hardness of the working part, hard and durable, low friction coefficient, and high durability.
It is suitable for drilling machines, tapping machines, automatic machine tools, machining centers, CNC, milling machines and other machine tools, and of course it can also be used for manual tapping.
The extrusion thread forming taps for aluminum are sharp and wear-resistant, with high tapping efficiency. They can tap a variety of materials such as die steel and brass. They can achieve chipless processing and are suitable for processing materials with low hardness and strong plasticity.
During processing, the situation of enlarging the bottom hole can be corrected.
This kind of tap has a precise spiral surface, can finely process internal threads, and is durable. The tightening handle design, universal handle type, is firm and durable, and enhances the seismic resistance and cutting speed of the tap.
Complete specifications, extrusion thread forming taps for aluminum with different apertures are complete in specifications, and we have quality assurance for what you need.
Material: HSSE
Size Range: Extrusion thread forming taps for aluminum are available in a variety of sizes to suit different hole diameters.
|
Specification |
Tooth pitch |
Thread length |
Total length |
Shank diameter |
Bottom hole diameter |
|
M1 |
0.25 |
4 |
32 |
3 |
0.89-0.92 |
|
M1.2 |
0.25 |
4 |
34 |
3 |
1.11-1.09 |
|
M1.4 |
0.3 |
5 |
36 |
3 |
1.26-1.3 |
|
M1.6 |
0.35 |
6.5 |
37 |
3 |
1.43-1.47 |
|
M1.7 |
0.35 |
6.5 |
37 |
3 |
1.52-1.57 |
|
M1.8 |
0.35 |
6.5 |
37 |
3 |
1.62-1.67 |
|
M2 |
0.4 |
11 |
40 |
3 |
1.79-1.84 |
|
M2.3 |
0.4 |
11 |
42 |
3 |
2.09-2.14 |
|
M2.5 |
0.45 |
15 |
44 |
3 |
2.27-2.34 |
|
M2.6 |
0.45 |
15 |
44 |
3 |
2.37-2.4 |
|
M3 |
0.5 |
18 |
46 |
4 |
2.75-2.82 |
|
M3.5 |
0.6 |
18 |
48 |
4 |
3.19-3.27 |
|
M4 |
0.7 |
20 |
52 |
5 |
3.65-3.72 |
|
M5 |
0.8 |
22 |
60 |
5.5 |
4.59-4.67 |
|
M6 |
1 |
24 |
62 |
6 |
5.49-5.59 |
|
M8 |
1.25 |
18 |
70 |
6.2 |
7.36-7.49 |
|
M10 |
1.5 |
20 |
75 |
7 |
9.22-9.34 |
|
M12 |
1.75 |
25 |
82 |
8.5 |
11.09-11.23 |
