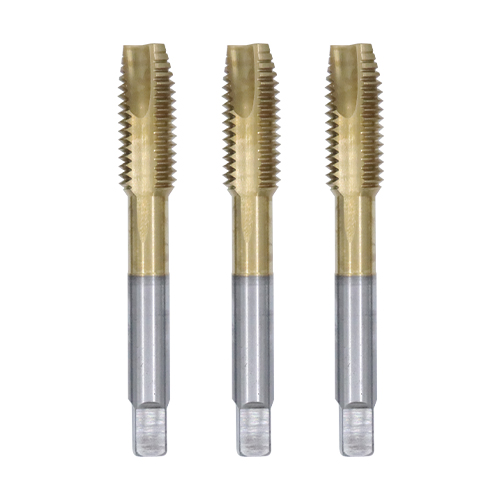

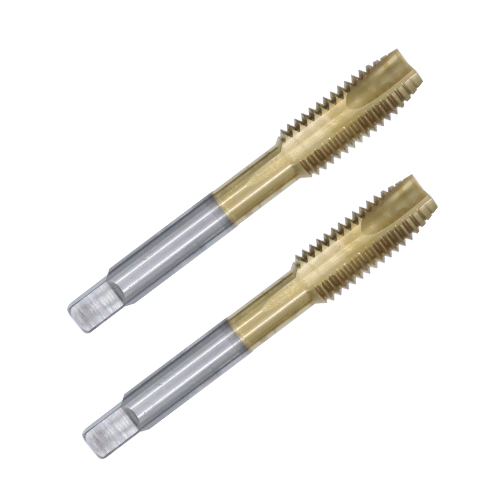

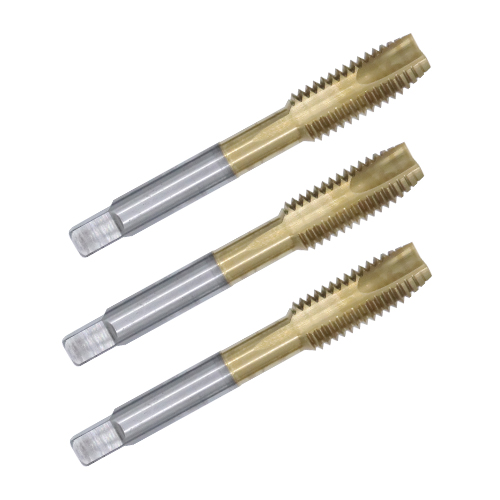

Titanium-Plated Spiral Point Taps

Titanium-plated spiral point taps are one of the high-quality products that ZXGLW manufacturers can provide you with. They are mainly suitable for the processing and manufacturing of various stainless steel products, meeting the needs of industrial processing and can be applied to different machine tools. We insist on quality control, have been pioneering and innovative, and have been recognized by many domestic and foreign customers. In the future, we will continue to insist on production and research and development.

Send Inquiry

Product Description

1: Titanium-plated spiral point taps are widely used in the processing and manufacturing of various stainless steel products and are an efficient processing tool. The product has good quality and can cope with different working conditions.

2: Complete specifications, suitable options can be found for different processing needs.

3: Optimized for the characteristics of stainless steel, strong durability and high efficiency

4: Recommended machines: drilling machine, tapping machine, automatic milling machine, CNC machine tool, CNC bench drill, ordinary machine drill


Product Specifications

Coating: TICN coating

Material: HSSE

Size range: titanium-plated spiral point taps are available in various sizes to suit different hole diameters. They can also be customized according to your individual needs.


Product specifications

Pitch

Blade length

Handle diameter

Total length

Product head

Drilling diameter

M2x0.4

0.4

11mm

3mm

43mm

spike

1.6mm

M2.5x0.45

0.45

12mm

3mm

46mm

spike

2.0mm

M3x0.5

0.5

13mm

4mm

49mm

spike

2.5mm

M4x0.7

0.7

15mm

5mm

55mm

spike

3.3mm

M5x0.8

0.8

19mm

5.5mm

62mm

spike

4.2mm

M6x1.0

1.0

22mm

6mm

67mm

spike

5mm

M8x1.25

1.25

22mm

6.3mm

71mm

flat head

6.8mm

M10x4.5

1.5

24mm

7mm

74mm

flat head

8.5mm

M12x1.75

1.75

32mm

8.5mm

83mm

flat head

10.3mm

M14x2.0

2.0

30mm

11.2mm

95mm

flat head

12mm

M16x2.0

2.0

33mm

12.3mm

102mm

flat head

14mm

M18x2.5

2.5

38mm

14mm

112mm

flat head

15.5mm

M20x2.5

2.5

40mm

14mm

112mm

flat head

17.5mm

M24x3.0

3.0

38mm

18mm

130mm

flat head

21mm

~

~

~

~

~

~

~


Note: All dimensions are measured by hand and may vary slightly; hence, the actual product should be consulted for precise measurements. For standard shallow holes, we suggest using the specified bottom hole size.

However, for deeper holes (between 2.5D and 4D or greater), the bottom hole diameter should be enlarged by a factor between 1.2 and 1.4.

Be careful: Given the tap's significant hardness in the titanium plating machine, it is not recommended to engage in threading operations either manually or with an electric drill.
