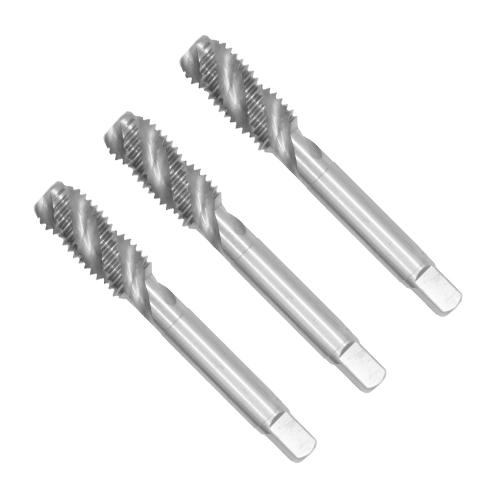

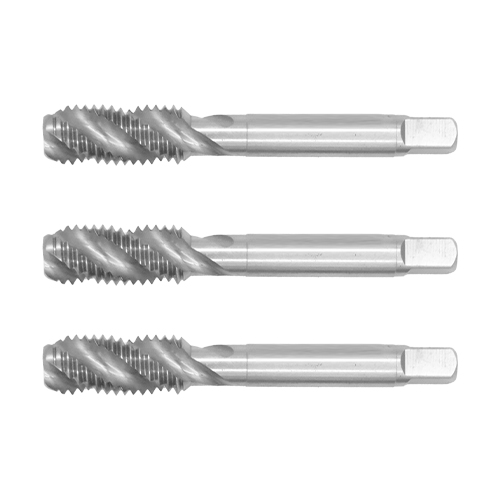

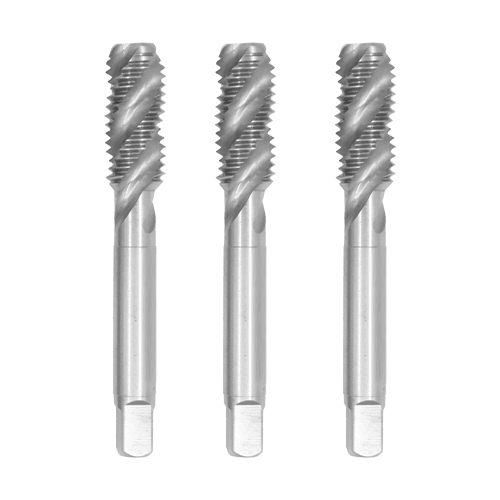

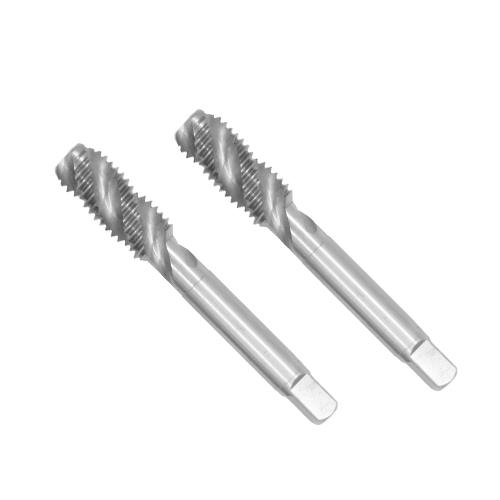

The spiral taps for aluminum produced by ZXGLW in China are specially designed for aluminum materials. They can efficiently process high-precision and high-quality threads on aluminum workpieces. This product is suitable for tapping blind holes, ensuring smooth upward chip removal during processing, effectively avoiding blockage, and ensuring the continuity and stability of processing.
1: Spiral taps for aluminum are widely used in the processing and manufacturing of various aluminum products, stable and reliable. As a professional factory, we adhere to strict quality control throughout the process to ensure that the products can function stably under various working conditions.
2: Complete specifications can meet the processing needs of different customers for thread sizes.
3: Strong targeting, optimized for the characteristics of stainless steel, the taps are durable and reduce the frequency of replacement.
4: Recommended machines: drilling machine, tapping machine, automatic milling machine, CNC machine tool, CNC bench drill, ordinary machine drill
Material: HSSE
Size range: spiral taps for aluminum are available in various sizes, and non-standard customization is also available.
Product specifications |
Pitch |
Blade length |
Handle diameter |
Total length |
Product head |
Drilling diameter |
M2x0.4 |
0.4 |
11mm |
3mm |
43mm |
spike |
1.6mm |
M2.5x0.45 |
0.45 |
12mm |
3mm |
46mm |
spike |
2.0mm |
M3x0.5 |
0.5 |
13mm |
4mm |
49mm |
spike |
2.5mm |
M4x0.7 |
0.7 |
15mm |
5mm |
55mm |
spike |
3.3mm |
M5x0.8 |
0.8 |
19mm |
5.5mm |
62mm |
spike |
4.2mm |
M6x1.0 |
1.0 |
22mm |
6mm |
67mm |
spike |
5mm |
M8x1.25 |
1.25 |
22mm |
6.3mm |
71mm |
flat head |
6.8mm |
M10x4.5 |
1.5 |
24mm |
7mm |
74mm |
flat head |
8.5mm |
M12x1.75 |
1.75 |
32mm |
8.5mm |
83mm |
flat head |
10.3mm |
M14x2.0 |
2.0 |
30mm |
11.2mm |
95mm |
flat head |
12mm |
M16x2.0 |
2.0 |
33mm |
12.3mm |
102mm |
flat head |
14mm |
M18x2.5 |
2.5 |
38mm |
14mm |
112mm |
flat head |
15.5mm |
M20x2.5 |
2.5 |
40mm |
14mm |
112mm |
flat head |
17.5mm |
M24x3.0 |
3.0 |
38mm |
18mm |
130mm |
flat head |
21mm |
~ |
~ |
~ |
~ |
~ |
~ |
~ |
Note: All measurements are taken manually and may contain inaccuracies; therefore, please refer to the physical product for exact dimensions. For general shallow holes, we recommend the stated bottom hole size. However, if the hole is deep (ranging from 2.5D to 4D or more), the bottom hole diameter should be increased by a factor of 1.2 to 1.4 times.
Be careful: Because of the tap's high hardness in the titanium plating machine, it is advisable not to use it manually or with an electric drill for threading operations.
