In the field of industrial measurement and precision tooling, accuracy is everything. When it comes to ensuring reliability and consistency, Smooth Gauges stand as an essential instrument used across manufacturing, mechanical testing, and calibration applications. These gauges are designed to verify dimensions, tolerances, and surface smoothness in precision parts — ensuring that every component meets exact engineering standards.
At Dongguan Drilling and Milling Tapping Tools Co., Ltd., we specialize in high-quality Smooth Gauges that guarantee performance, durability, and superior accuracy in every use. But what exactly are Smooth Gauges, how do they work, and why are they so vital in modern manufacturing? Let's explore these questions in depth.

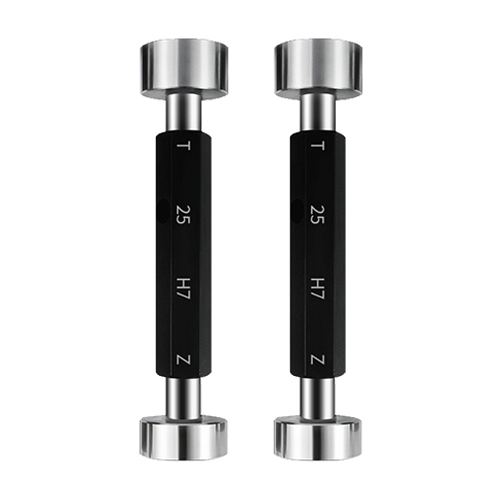

Smooth Gauges are precision tools used to check the dimensional accuracy of holes, shafts, and other cylindrical parts without threads. Unlike thread gauges, they measure the plain surface dimensions, ensuring the parts conform to tolerance limits as per industrial standards.
Smooth Gauges are usually classified into two main types:
Go Gauges: Used to test the lower limit of the tolerance range.
No-Go Gauges: Used to test the upper limit of the tolerance range.
If a part passes the Go Gauge but fails the No-Go Gauge, it confirms that the dimensions are within the allowable tolerance — ensuring a perfect fit during assembly or operation.
The role of Smooth Gauges goes beyond simple measurement; they are essential for maintaining quality assurance throughout the production process.
They help:
Ensure interchangeability of parts in mass production.
Reduce manufacturing defects by early detection of out-of-spec components.
Maintain international tolerance standards (ISO, DIN, JIS, etc.).
Increase operational efficiency by minimizing rework and waste.
Without accurate gauges, even the smallest dimensional error can lead to significant performance failures — especially in high-precision industries such as aerospace, automotive, and medical device manufacturing.
The quality of a Smooth Gauge is determined by several technical parameters that define its measurement capability and durability. Below is a detailed table that outlines the key specifications provided by Dongguan Drilling and Milling Tapping Tools Co., Ltd.
| Parameter | Specification Range / Description |
|---|---|
| Product Name | Smooth Gauge (Go / No-Go Type) |
| Material | High-Speed Steel (HSS), Carbide, Stainless Steel |
| Measuring Range | 1.00 mm – 150.00 mm |
| Tolerance Accuracy | ±0.001 mm – ±0.005 mm |
| Surface Finish | Mirror-polished, rust-resistant coating |
| Hardness | HRC 58–62 |
| Gauge Type | Cylindrical Plug Gauge, Ring Gauge, Snap Gauge |
| Applicable Standards | ISO 1502 / DIN 2245 / JIS B7420 |
| Usage | Checking hole diameters, shafts, bushings, and cylindrical parts |
| Customization | Available on request for non-standard dimensions |
These parameters ensure that every Smooth Gauge produced by Dongguan Drilling and Milling Tapping Tools Co., Ltd. provides consistent performance and reliability under diverse operating conditions.
Using Smooth Gauges requires precision handling to ensure measurement accuracy and to extend tool life. Here are the recommended usage steps:
Clean the Gauge and Workpiece:
Remove oil, dust, or burrs before measurement to avoid interference.
Select the Appropriate Gauge Type:
Use Go Gauge to verify the minimum size and No-Go Gauge for the maximum limit.
Apply Uniform Pressure:
Insert or fit the gauge gently without forcing it. A proper Go fit and a No-Go rejection confirm dimensional correctness.
Record and Calibrate Regularly:
Keep a measurement log and calibrate gauges periodically according to international standards.
By following these steps, you can ensure the full accuracy potential of your Smooth Gauges.
Smooth Gauges provide multiple advantages in production and quality control processes:
High Precision: Ensures that every measured component meets the specified tolerance.
Durable Material: Made from wear-resistant steel or carbide for long-term use.
Time Efficiency: Allows quick verification without complex setups.
Consistent Quality Control: Eliminates guesswork and ensures consistent output across batches.
Customizable Options: Designed to meet unique industrial needs with special tolerances and sizes.
At Dongguan Drilling and Milling Tapping Tools Co., Ltd., we combine advanced manufacturing technology and strict inspection systems to deliver gauges that exceed customer expectations.
Smooth Gauges play an essential role across various industries where precision is key:
Automotive Industry: For checking engine parts, shafts, and bearings.
Aerospace Industry: For verifying turbine and engine component tolerances.
Medical Equipment Manufacturing: For precise dimension control in implants and surgical tools.
Mechanical Workshops: For checking cylindrical parts and machine components.
Tool and Die Industry: For ensuring mold dimensions meet the exact standards.
Each of these sectors relies heavily on accuracy, and Smooth Gauges are the foundation that guarantees quality and performance.
Q1: What is the difference between Smooth Gauges and Thread Gauges?
A1: Smooth Gauges are designed for measuring plain (non-threaded) holes or shafts, while Thread Gauges check threaded components. Smooth Gauges focus on dimensional accuracy, ensuring parts fit correctly without threading.
Q2: How often should Smooth Gauges be calibrated?
A2: Calibration should be performed every 6–12 months, depending on the frequency of use and working environment. Regular calibration maintains measurement accuracy and extends gauge life.
Q3: Can Smooth Gauges be customized for special dimensions?
A3: Yes, at Dongguan Drilling and Milling Tapping Tools Co., Ltd., we provide full customization services for non-standard dimensions, tolerance levels, and materials to meet specific project requirements.
Q4: What maintenance steps should be taken to extend the life of Smooth Gauges?
A4: Store them in a dry, dust-free environment; clean after each use; apply rust-preventive oil; and avoid dropping or applying excessive pressure during measurement.
Precision, reliability, and quality are the defining traits of every Smooth Gauge we manufacture. Whether you are working in high-precision engineering, automotive assembly, or industrial production, our gauges ensure your measurements meet the strictest global standards.
With years of manufacturing expertise, Dongguan Drilling and Milling Tapping Tools Co., Ltd. offers tailored solutions, excellent customer support, and premium materials that guarantee performance consistency.
For more information, custom orders, or technical consultation, please contact us today. Let's ensure your production precision stays unmatched with our superior Smooth Gauges.
