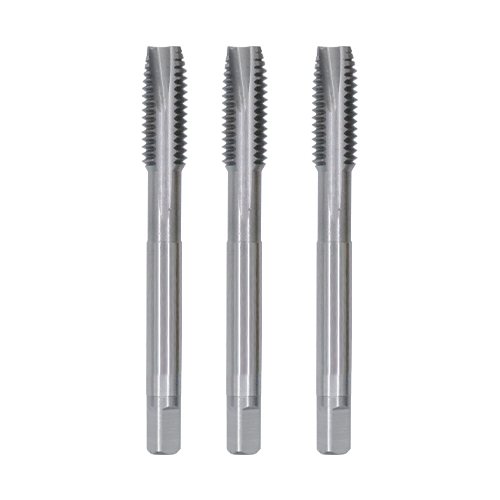

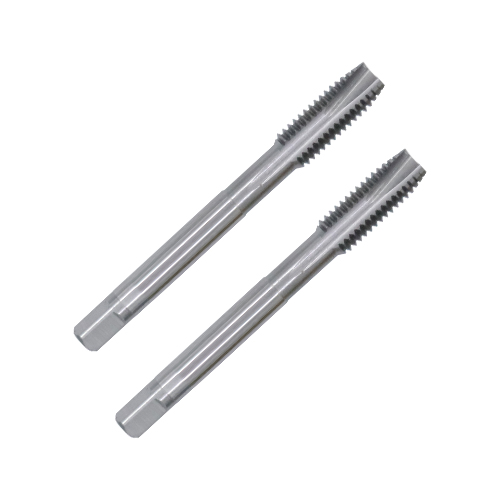

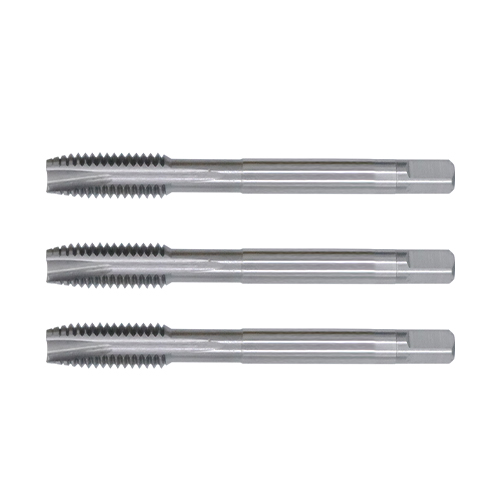

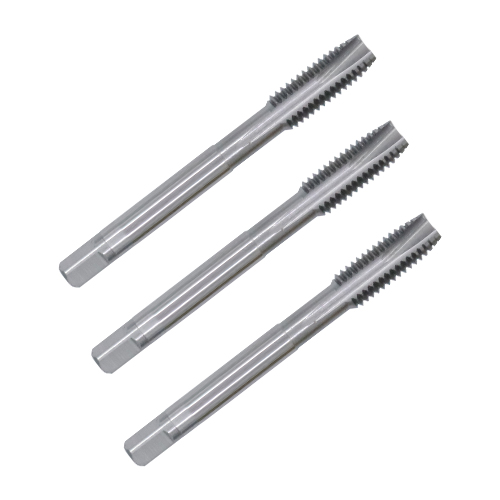

As a professional factory, ZXGLW can provide you with spiral point taps for aluminum. This product is suitable for processing all kinds of aluminum products, with high quality and good stability, thus ensuring processing efficiency. It is suitable for a variety of different equipment and has a full range of sizes to meet the needs of different customers. At the same time, as a manufacturer with a complete production line, we also support customization.
1: Spiral point taps for aluminum are widely used in the processing and manufacturing of various aluminum products, stable and reliable. Our team always adheres to strict quality control to ensure that the product can provide you with good solutions under different usage conditions.
2: Complete specifications to meet different processing needs.
3: Strong targeting, strong durability, ideal service life, reduce replacement frequency, and provide more convenience for your processing.
4: Recommended machines: drilling machine, tapping machine, automatic milling machine, CNC machine tool, CNC bench drill, ordinary machine drill
Material: HSSE
Size Range: These taps are available in a variety of sizes to suit different hole diameters. We can also handle non-standard parts, so please contact us immediately if you have any needs.
Product specifications |
Pitch |
Blade length |
Handle diameter |
Total length |
Product head |
Drilling diameter |
M2x0.4 |
0.4 |
11mm |
3mm |
43mm |
spike |
1.6mm |
M2.5x0.45 |
0.45 |
12mm |
3mm |
46mm |
spike |
2.0mm |
M3x0.5 |
0.5 |
13mm |
4mm |
49mm |
spike |
2.5mm |
M4x0.7 |
0.7 |
15mm |
5mm |
55mm |
spike |
3.3mm |
M5x0.8 |
0.8 |
19mm |
5.5mm |
62mm |
spike |
4.2mm |
M6x1.0 |
1.0 |
22mm |
6mm |
67mm |
spike |
5mm |
M8x1.25 |
1.25 |
22mm |
6.3mm |
71mm |
flat head |
6.8mm |
M10x4.5 |
1.5 |
24mm |
7mm |
74mm |
flat head |
8.5mm |
M12x1.75 |
1.75 |
32mm |
8.5mm |
83mm |
flat head |
10.3mm |
M14x2.0 |
2.0 |
30mm |
11.2mm |
95mm |
flat head |
12mm |
M16x2.0 |
2.0 |
33mm |
12.3mm |
102mm |
flat head |
14mm |
M18x2.5 |
2.5 |
38mm |
14mm |
112mm |
flat head |
15.5mm |
M20x2.5 |
2.5 |
40mm |
14mm |
112mm |
flat head |
17.5mm |
M24x3.0 |
3.0 |
38mm |
18mm |
130mm |
flat head |
21mm |
~ |
~ |
~ |
~ |
~ |
~ |
~ |
Note: All measurements are taken manually and may contain inaccuracies; therefore, please refer to the physical product for exact dimensions. For general shallow holes, we recommend the stated bottom hole size. However, if the hole is deep (ranging from 2.5D to 4D or more), the bottom hole diameter should be increased by a factor of 1.2 to 1.4 times.
Be careful: Because of the tap's high hardness in the titanium plating machine, it is advisable not to use it manually or with an electric drill for threading operations.
