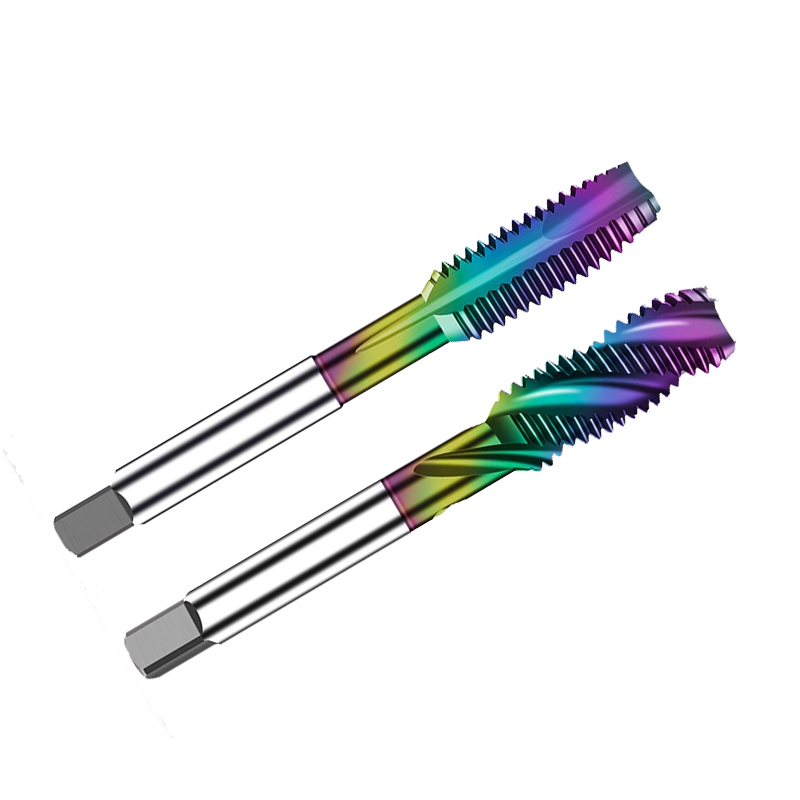

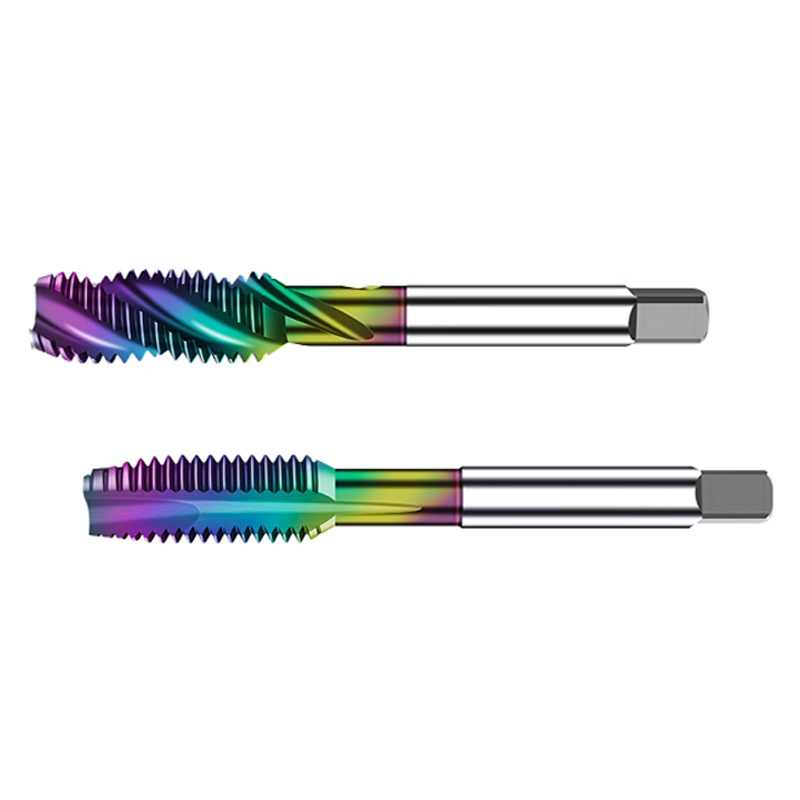

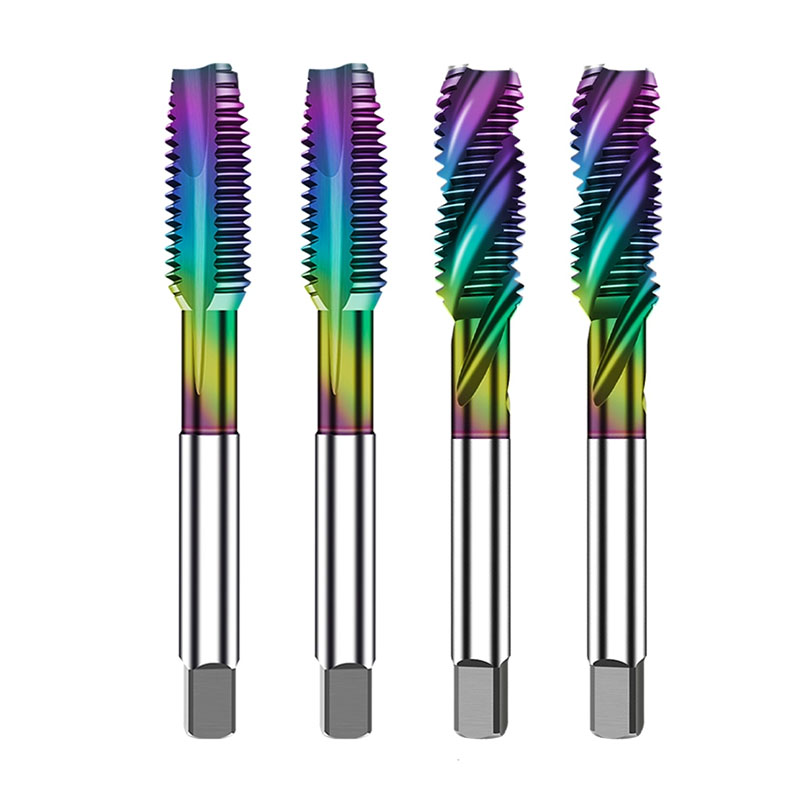

ZXGLW is a professional tap manufacturer. Colorful spiral point taps are one of its beautiful and efficient products. The colorful nano-coating combined with high-quality taper body materials can better improve the mechanical properties during use and extend the service life. It is suitable for tapping blind holes and is available in a full range of sizes.
This colorful spiral point taps from the ZXGLW factory in China uses an advanced process that combines an integral high-speed steel cone body with a colorful nano-coating. Its cobalt-containing material greatly improves wear resistance and cutting performance. The tap has a unique dual-shaped groove design to ensure that there is no burr residue during the processing process and the blade is always sharp.
Colorful spiral point taps are suitable for processing a variety of materials such as aluminum and copper, and perform well in blind hole tapping operations. Its wide range of applications is also reflected in the mechanical equipment that can be adapted, including drilling machines, tapping machines, automatic machine tools, machining centers CNC and milling machines. In terms of size, considering the actual needs of different applications, we can provide a variety of specifications from M1 to M6. The shank is a pointed design, and it can be ground flat if a flat edge is required. With its excellent toughness and wear resistance, colorful spiral point taps will bring a new experience of efficiency and precision to your metal processing work.
Please note that this product is not recommended for hand use or use with an electric drill.
Specification |
Total length |
Blade length |
Avoidance path |
Shank diameter |
M1*0.25 |
36 |
6 |
/ |
3 |
M1.2*0.25 |
36 |
5.5 |
/ |
3 |
M1.4*0.3 |
36 |
7 |
/ |
3 |
M1.6*0.35 |
38 |
8 |
/ |
3 |
M1.7*0.35 |
38 |
8 |
/ |
3 |
M1.8*0.35 |
38 |
9 |
/ |
3 |
M2*0.4 |
42 |
8 |
4 |
3 |
M2.2*0.45 |
42 |
8 |
4 |
3 |
M2.3*0.4 |
42 |
8 |
4 |
3 |
M2.5*0.45 |
45 |
10 |
5 |
3 |
M2.6*0.45 |
45 |
10 |
4 |
3 |
M3*0.5 |
48 |
10 |
5 |
4 |
M3.5*0.6 |
50 |
13 |
5 |
4 |
M4*0.7 |
55 |
12 |
5 |
5 |
M5*0.8 |
62 |
15 |
8 |
5.5 |
M6*1 |
67 |
18 |
10 |
6 |
M7*1 |
70 |
22 |
/ |
6.2 |
M8*1.25 |
70 |
22 |
/ |
6.2 |
M10*1.5 |
75 |
25 |
/ |
7 |
M12*1.75 |
82 |
30 |
/ |
8.5 |
