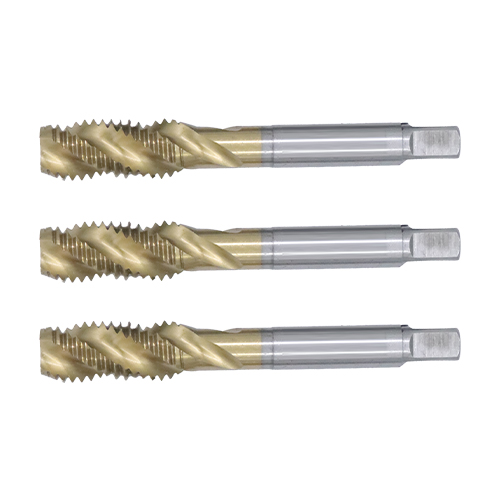

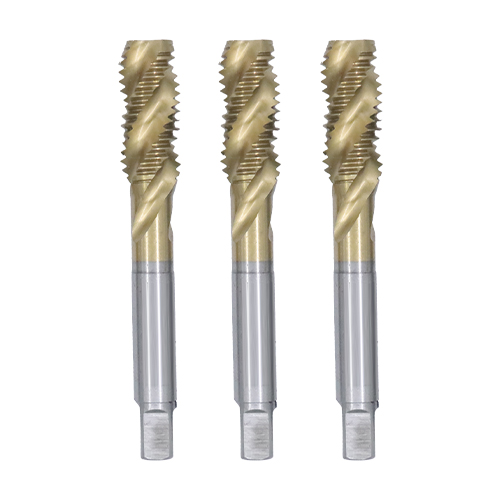

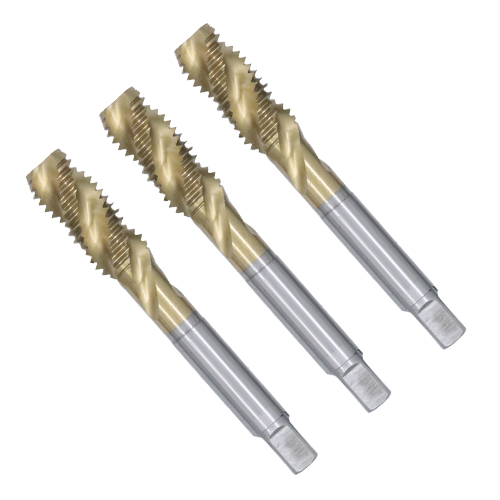

The titanium-plated spiral taps manufactured by ZXGLW factory are specially designed for stainless steel materials and can efficiently process high-precision and high-quality threads on stainless steel workpieces. We can provide you products with competitive price, if you have any interest, please feel free to get in touch with us!
The titanium-plated spiral taps are usually used for tapping blind holes to ensure that chips are evacuated upward smoothly during processing, effectively avoiding blockage and ensuring the continuity and stability of processing.
1. Titanium-plated spiral taps are widely used in the processing and manufacturing of various stainless steel products, stable and reliable. Strict quality control ensures that the product can function stably under various working conditions.
2. Complete specifications can meet the processing requirements of different customers for thread sizes.
3. Strong targeting. Optimized for the characteristics of stainless steel, the taps are durable and reduce the frequency of replacement.
4. Recommended machines: drilling machine, tapping machine, automatic milling machine, CNC machine tool, CNC bench drill, ordinary machine drill.
Coating: TICN Coating
Material: HSSE
Size Range: These taps are available in a variety of sizes to suit different hole diameters.
Product specifications |
Pitch |
Blade length |
Handle diameter |
Total Length |
Product head |
Drilling diameter |
M2x0.4 |
0.4 |
11mm |
3mm |
43mm |
spike |
1.6mm |
M2.5x0.45 |
0.45 |
12mm |
3mm |
46mm |
spike |
2.0mm |
M3x0.5 |
0.5 |
13mm |
4mm |
49mm |
spike |
2.5mm |
M4x0.7 |
0.7 |
15mm |
5mm |
55mm |
spike |
3.3mm |
M5x0.8 |
0.8 |
19mm |
5.5mm |
62mm |
spike |
4.2mm |
M6x1.0 |
1.0 |
22mm |
6mm |
67mm |
spike |
5mm |
M8x1.25 |
1.25 |
22mm |
6.3mm |
71mm |
flat head |
6.8mm |
M10x1.5 |
1.5 |
24mm |
7mm |
74mm |
flat head |
8.5mm |
M12x1.75 |
1.75 |
32mm |
8.5mm |
83mm |
flat head |
10.3mm |
M14x2.0 |
2.0 |
30mm |
11.2mm |
95mm |
flat head |
12mm |
M16x2.0 |
2.0 |
33mm |
12.3mm |
102mm |
flat head |
14mm |
M18x2.5 |
2.5 |
38mm |
14mm |
112mm |
flat head |
15.5mm |
M20x2.5 |
2.5 |
40mm |
14mm |
112mm |
flat head |
17.5mm |
M24x3.0 |
3.0 |
38mm |
18mm |
130mm |
flat head |
21mm |
~ |
~ |
~ |
~ |
~ |
~ |
~ |
Note: All dimensions are measured manually and have errors. Please refer to the actual product. The recommended bottom hole size is a general shallow hole. If it is a deep hole (2.5D-4D or above), the bottom hole diameter should be enlarged by 1.2-1.4 times accordingly.
Be careful: Due to the high hardness of the tap used in the titanium plating machine, it is not recommended to use it manually or with an electric drill for tapping.
